SickToolbox::SickLMSMessage Class Reference

A class to represent all messages sent to and from the Sick LMS 2xx. More...

#include <c++/drivers/lms/sicklms-1.0/SickLMSMessage.hh>

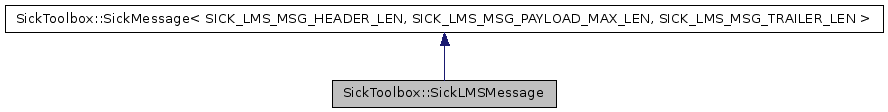

Inheritance diagram for SickToolbox::SickLMSMessage:

Inheritance graph
[legend]
Collaboration diagram for SickToolbox::SickLMSMessage:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 SickLMSMessage ()
 A default constructor.
 SickLMSMessage (const uint8_t dest_address, const uint8_t *const payload_buffer, const unsigned int payload_length)
 A constructor for building a message from the given parameter values.
 SickLMSMessage (uint8_t *const message_buffer)
 A constructor for parsing a byte sequence into a message object.
void BuildMessage (uint8_t dest_address, const uint8_t *const payload_buffer, const unsigned int payload_length)
 Consructs a message object from given parameter values.
void ParseMessage (const uint8_t *const message_buffer)
 Parses a sequence of bytes into a well-formed message.
uint8_t GetDestAddress () const
uint8_t GetCommandCode () const
uint8_t GetStatusByte () const
uint16_t GetChecksum () const
void Clear ()
 Reset all internal fields and buffers associated with the object.
void Print () const
 Print the message contents.
 ~SickLMSMessage ()

Protected Attributes

uint16_t _checksum

Detailed Description

A class to represent all messages sent to and from the Sick LMS 2xx.

This class helps to construct messages to be sent to the Sick. It also provides a container for received messages to be parsed into.


Constructor & Destructor Documentation

SickToolbox::SickLMSMessage::SickLMSMessage (  )

A default constructor.

Default constructor. Constructs an empty message (not well-formed!).

SickToolbox::SickLMSMessage::SickLMSMessage ( const uint8_t  dest_address,
const uint8_t *const   payload_buffer,
const unsigned int  payload_length
)

A constructor for building a message from the given parameter values.

Constructs a frame by using BuildMessage().

SickToolbox::SickLMSMessage::SickLMSMessage ( uint8_t *const  message_buffer  )

A constructor for parsing a byte sequence into a message object.

Constructs a frame using ParseMessage().

SickToolbox::SickLMSMessage::~SickLMSMessage (  )

Destructor


Member Function Documentation

void SickToolbox::SickLMSMessage::BuildMessage ( uint8_t  dest_address,
const uint8_t *const   payload_buffer,
const unsigned int  payload_length
)

Consructs a message object from given parameter values.

Constructs a well-formed raw frame from input fields.

void SickToolbox::SickLMSMessage::ParseMessage ( const uint8_t *const   message_buffer  )  [virtual]

Parses a sequence of bytes into a well-formed message.

Populates fields from a (well-formed) raw frame.

Implements SickToolbox::SickMessage< SICK_LMS_MSG_HEADER_LEN, SICK_LMS_MSG_PAYLOAD_MAX_LEN, SICK_LMS_MSG_TRAILER_LEN >.

uint8_t SickToolbox::SickLMSMessage::GetDestAddress (  )  const [inline]

Gets the address of the frame.

uint8_t SickToolbox::SickLMSMessage::GetCommandCode (  )  const [inline]

Gets the command code associated with the message

uint8_t SickToolbox::SickLMSMessage::GetStatusByte (  )  const [inline]

Gets the status byte from an LMS response message (NOTE: only applies to Sick LMS response telegrams!)

uint16_t SickToolbox::SickLMSMessage::GetChecksum (  )  const [inline]

Gets the checksum for the message.

void SickToolbox::SickLMSMessage::Clear (  )  [virtual]

Reset all internal fields and buffers associated with the object.

Reset the data associated with this message (for initialization purposes)

Reimplemented from SickToolbox::SickMessage< SICK_LMS_MSG_HEADER_LEN, SICK_LMS_MSG_PAYLOAD_MAX_LEN, SICK_LMS_MSG_TRAILER_LEN >.

void SickToolbox::SickLMSMessage::Print (  )  const [virtual]

Print the message contents.

A debugging function that prints the contents of the message.

Reimplemented from SickToolbox::SickMessage< SICK_LMS_MSG_HEADER_LEN, SICK_LMS_MSG_PAYLOAD_MAX_LEN, SICK_LMS_MSG_TRAILER_LEN >.


Member Data Documentation

uint16_t SickToolbox::SickLMSMessage::_checksum [protected]

The checksum (CRC16)


The documentation for this class was generated from the following files:
